T24

PRODUCT

T24

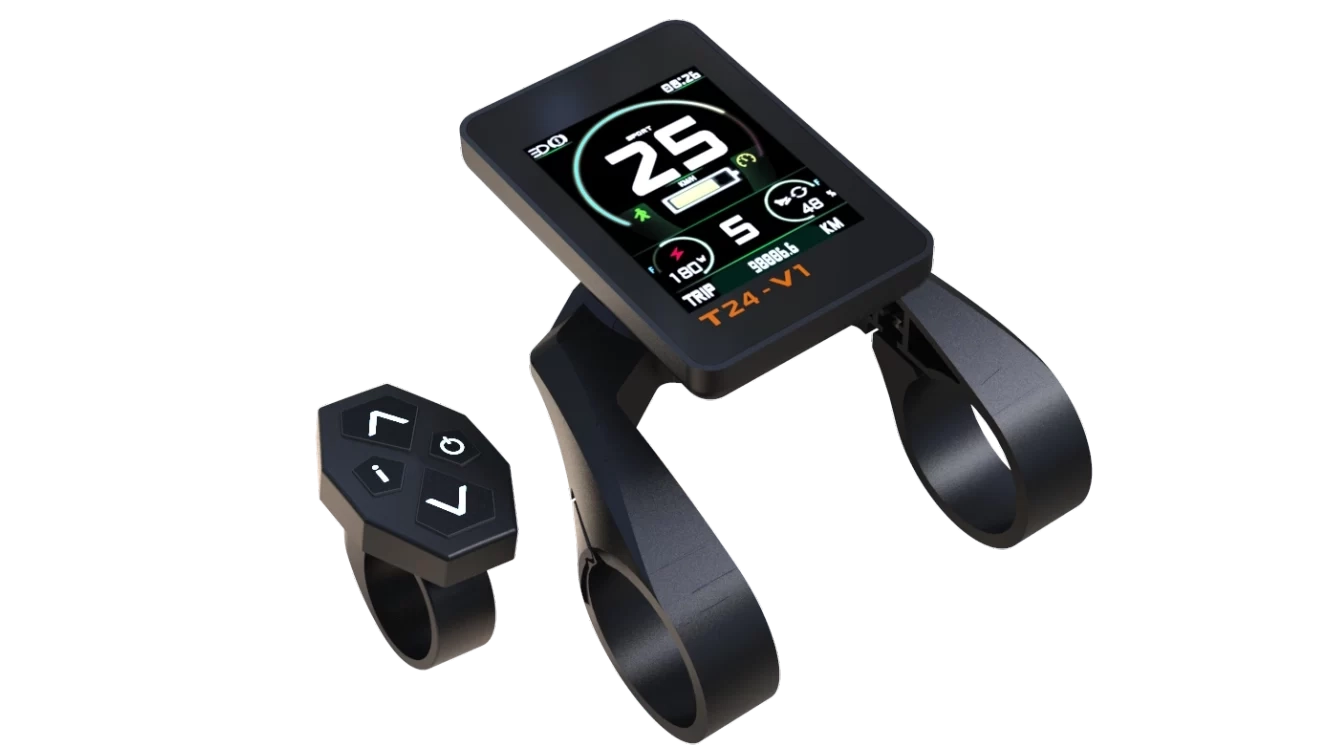

T24 Center Control Panel for Electric Bike Drive System!



Display screen material: 2.4″ TFT

Button: Silicon (Red/Blue Backlight)

Power: 15-60VDC/10mA

Housing material: ABS+PC

Communication protocols: UART/RS232/CAN

Waterproof Level: IP65

t24 ebike display Center Control Panel

t24 ebike display Center Control Panel

T24 CENTER CONTROL PANEL, OFFERING ENHANCED FEATURES FOR AN EXCEPTIONAL EXPERIENCE!

Enhanced Riding Experience

Vibrant TFT Colorful Screen: Enjoy a crystal-clear display showcasing various data and settings, enhancing visibility and interaction during rides with T24 center control panel.

Transparent Silicon Rubber Buttons: Equipped with LED backlights, ensuring effortless navigation and operation for users.

User-Friendly GUI Interface: Seamlessly navigate and adjust ebike parameters with ease through the intuitive graphical user interface, enhancing user experience.

Informed Decision and Compatibility

Digital Communication Support: Enables seamless integration with other devices and systems, ensuring efficient data exchange and operation.

Customization Options: Personalize your control panel with three font color solutions and three colorful skins, empowering users to match their panel’s appearance to their unique style.

Smart Light Sensor Technology: Automatically adjusts screen backlight based on ambient light intensity, optimizing visibility in diverse lighting conditions. Additionally, it intelligently powers the light on or off, offering both convenience and energy efficiency.

Contact us today and embark on a personalized, enhanced journey!

ADDITIONAL INFORMATION

Mode

T24

Screen

2.4" TFT

Button

Sillicon( Red/Blue Backlight )

Power

15-60VDC/10mA

Communication

UART/RS232/CAN

Housing Material

ABS+PC

Weight

58(g)

Customaization

Available

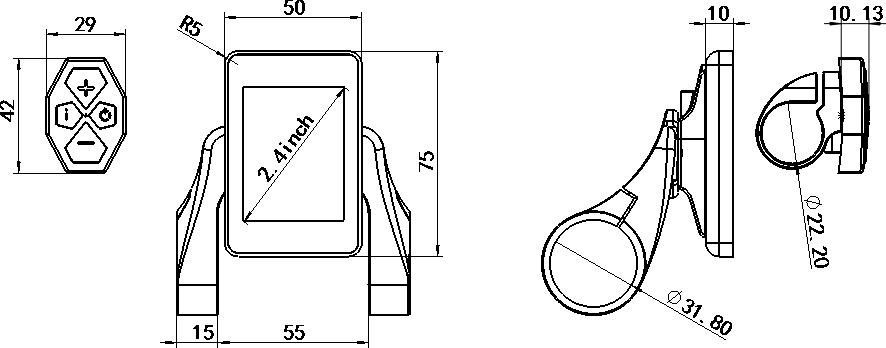

t24 display diagram
