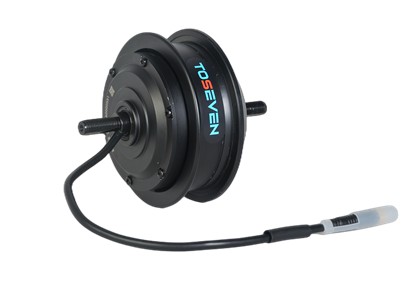

A7-100YL Hub Motor Unit
Upgrade Your Wheelchair Experience with A7-100YL Hub Motor!
Specially Designed for Optimal Performance in Wheelchairs
Boasting 40N.M Torque for Reliable and Robust Mobility
Customizable Power Output Up To 350W
Perfectly Suited for an 8′ Wheel Size
A7-100YL Hub Motor-Where Power Meets Precision!
Tailored for Wheelchairs: Specially designed for optimal performance in wheelchairs.
Powerful Torque: Boasting 40N.m torque for reliable and robust mobility.
Customizable Power Output: Adjust the power up to 350W to meet your specific requirements.
Wheel Size 8′: Perfectly suited for an 8′ wheel size, ensuring a comfortable and efficient ride.
Ready to Take the Next Step? Contact us today!
| Mounting Position | Rear |
|---|---|
| Cable Routing | Left Side |
| Shell Color | Black / Silver |
| Rated Power(W) | 250~350W |
| Rated Voltage | 24V/36V |
| Wheel Size | 8' |
| Reduction Ratio | 5.61:1 |
| Efficiency | ＞80% |
| Max Torque | ＞40N.m |
| Max Speed (km/h) | 8 ~ 12 |
| Brake Style | Disc/Brake |
| Magnet Rate | 16 Poles |
| Speed Sensor | 1/6 |
| Hall Sensor | With /Without |
| Spoke | 12G/13G |
| Noise Level | <50dB |
| Work Temperature | -20°C~45°C |
| Motor Weight | 3.0Kg |
| Waterproof Level | IP65 |
