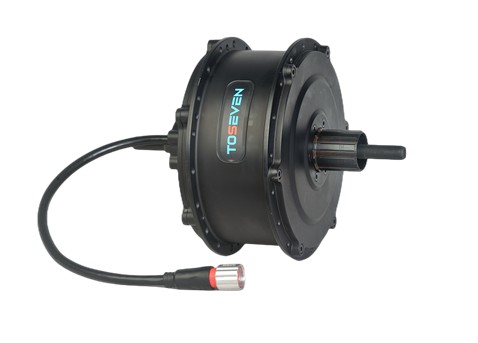

D79-190KL Hub Motor Unit
(eCargo + eFat)
Ready to conquer any terrain with the D79-190KL Hub Motor?
High-Power Rear E-Bike Hub Motor
Tailored for Fat Tire Electric Bicycles
Customizable Power up to 2000W
Achieves a Maximum Torque of 110N.m
O.L.D is 190mm, Cassette Freewheel
Redefine Your E-Bike Experience Today!
2000w
110NM
190mm
DISCOVER THE E-BIKE D79-190KL HUB MOTOR!
High Power Rear E-Bike D79-190KL Hub Motor: Your gateway to electrifying e-bike adventures.
Tailored for Fat Tire Electric Bicycles: Specially designed for fat tire e-bikes with customizable power from 1000W to an exhilarating 2000W and a maximum torque of 110N.m.
Built to Endure: Crafted from aluminum alloys for high resistance to humidity, rust, corrosion, dust, and environmental elements.
Lightweight and Low Maintenance: Enjoy a durable, featherweight design with minimal upkeep.
Whisper-Quiet Performance: The high-power motor ensures a silent, quick start and robust climbing ability.
Easy Installation: High efficiency, minimal noise, and rapid response.
Get in Touch With Us Now!
ADDITIONAL INFORMATION
| D79 Series | D79-190KL |
|---|---|
| Colour | Black / Silver |
| Installation Site | Rear |
| Applied for E-bikes | e-FAT |
| Cable Routing | Side-Left |
| Cable Length(mm) | 200 |
| Sprocket Wheel | 8～10 |
| Brake Style | Disk-Brake |
| Spokes Holes | 36H |
| Spokes Size | 13G/12G |
| Spokes Central Dist.(mm) | 174 |
| Open Size(mm) | 190 |
| Wheel Size(inch) | 20/26/28/700C |
| Voltage(Vdc) | 48, 52, 60 |
| Rated Power(W) | 1000,1500,2000 |
| Max Speed(km/h) | 50, 55, 60 |
| Max Torque(N.m) | 110 |
| Reduction Ratio | 5.8:1 |
| Magnet Items(pcs) | 16 |
| Speed Sensor(pcs) | 1～6 |
| Efficiency(%) | ≥80 |
| Work Temperature(℃) | -20～45 |
| Noise Items(dB) | ＜50 |
| Weight(kg) | 5.9 |
| Waterproof Level | IP65 |
| Shells Material | Aluminium Alloy |
