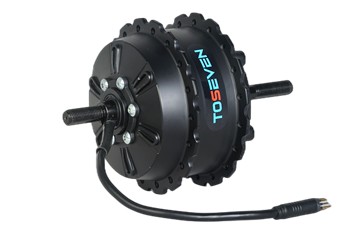

K7-135XL Hub Motor Unit

PRODUCT

Ready To Power Up Your Ride with K7-135XL E-Bike Hub Motor?

Specially Designed for City Electric Bicycle

Powerful Rear Hub Motor With 45N.M

Customizable 350W Power Output

Thrilling Speeds of 35 Km/H

O.L.D is 135mm, Freewheel

Power, Precision, Performance for your E-Bike Adventure!

K7-135XL Hub Motor: Unleashing E-Bike Power!

Powerful Rear Hub: 45N.m torque for robust performance.

Customizable 350W Output: Tailor your ride from 250W to 350W.

Thrilling Speeds: 35 km/h for an electrifying journey.

Robust Aluminum Build: Resistant to humidity, rust, and corrosion.

Lightweight & Durable: Boasts a lightweight design with high durability, weighing in at only 2.3 kg for easy handling.

Efficiency, Quiet, Rapid: Experience top efficiency, minimal noise, and rapid responsiveness.

Contact Us Today For Inquiries and Electrifying Adventures!

Additional information

K7 Series	K7-135XL
Colour	Black/Silver
Installation Site	Rear
Applied for E-bikes	e-City, e-Tour, e-Road
Cable Routing	Side-Left
Cable Length(mm)	200
Sprocket Wheel	6～7
Brake Style	Disk-Brake
Spokes Holes	36
Spokes Size	13G/12G
Spokes Central Dist.(mm)	113
Open Size(mm)	135
Wheel Size(inch)	12/14/16/20/26/28
Voltage(Vdc)	24, 36, 48
Rated Power(W)	250, 350
Max Speed(km/h)	25, 35
Max Torque(N.m)	＞45
Reduction Ratio	8.14:1
Magnet Items(pcs)	16
Speed Sensor(pcs)	1～6
Efficiency（%）	≥80
Work Temperature(℃)	-20～45
Noise Items(dB)	＜50
Weight(kg)	2.3
Waterproof Level	IP65
Shells Material	Aluminium Alloy
