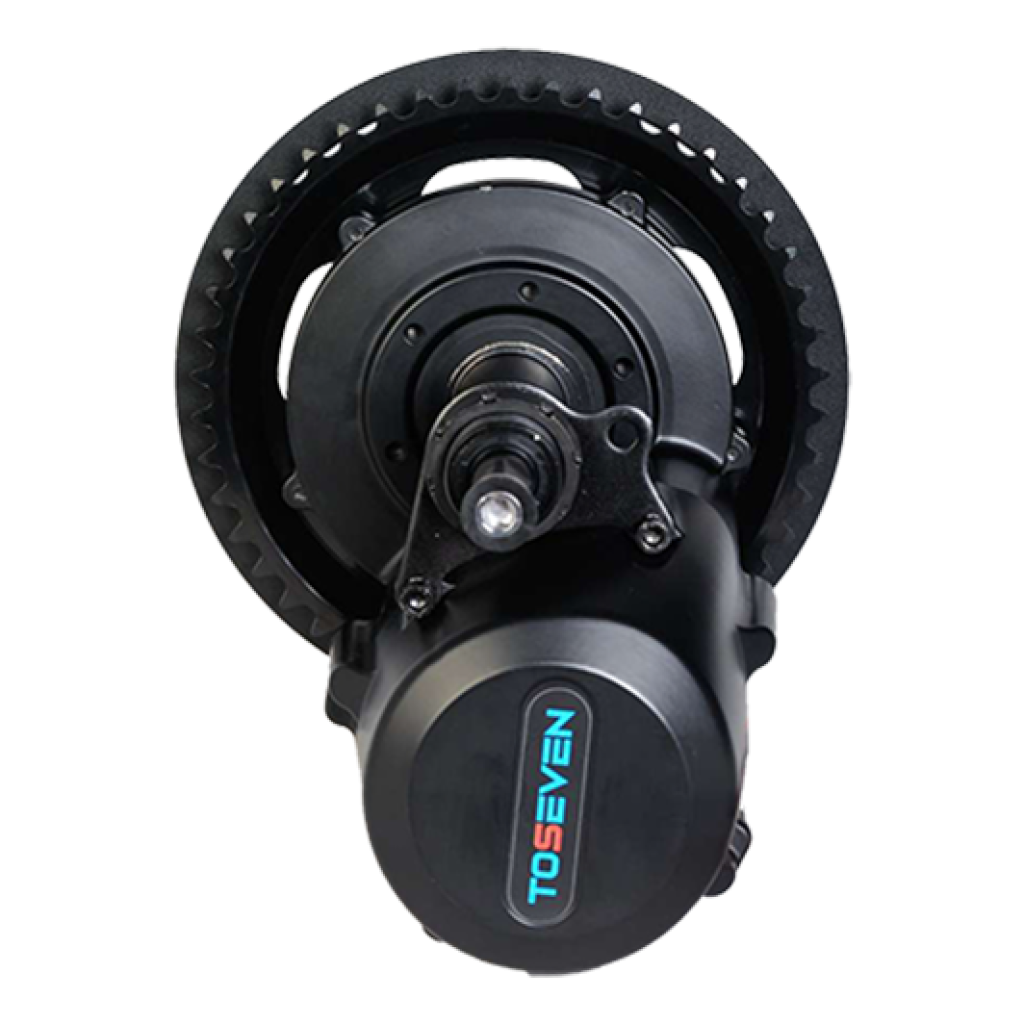

DM01 Mid Drive Motor
Torque Sensor / Cadence Sensor

Additional informations

① BB=68-73	DM01-1000	DM01-750






Component Part

Specification

Qty

BB=68

BB=73




Axle Screw

M8X1X15

2

√

√



Left Crank

170mm

1

√

√




Decoration Cap



1

√

√




Non-standard Nut

M33.5X1.5

1

√

√




Screw

See Column 4 or 5

2

M6X14

M6X20




Reinforced Plates



1

√

√




Drive Unit

DM01-1000 or DM01-750

1

√

√




Crankset

46T

1

√

√




Locknut

M42X1.5

1

√

√




Right Crank

170mm

1

√

√




Bushing

See Column 5

2

×

Φ6X5



② BB=100-110	DM01L-1000	DM01L-750







Component Part

Specification

Qty

BB=100

BB=110




Axle Screw

M8X1X15

2

√

√



Left Crank

170mm

1

√

√




Decoration Cap



1

√

×




Non-standard Nut

M33.5X1.5

1

√

√




Screw

See Column 4 or 5

2

M6X45

M6X55




Reinforced Plates



1

√

√




Drive Unit

DM01L-1000 or DM01L-750

1

√

√




Crankset

46T

1

√

√




Locknut

M42X1.5

1

√

√




Right Crank

170mm

1

√

√




Lock Washer

See Column 5

2

Φ6X32

Φ6X42



   ① BB=68   CL=50 (or 59)
         Model: DM01-1000     DM01-750






   ② BB=73   CL=52.5  (or 61.5)
         Model:   DM01-1000    DM01-750




   ③ BB=100   CL=66 (or 75)
         Model:   DM01L-1000     DM01L-750




   ④ BB=110   CL=71 (or 80)
         Model:    DM01L-1000    DM01L-750



1) Installation Tool

   ① Special wrench：



   ② General tools：  6mm  Allen wrench
                                            8mm  Allen wrench


2) Cranket Mounting
   -  Tools： Special wrench

   -  Operation： Align the internal splines of the cranket 8 with the external
      splines of the motor 7, press firmly to the end. Then tighten the lock nut  9,
      counterclockwise with a special wrench with a tightening torque of 15Nm

   -  Diagram:



3) Motor Mounting

  -  Insert the mid-drive motor through bottom bracket from right side of the bicycle
     frame and push it all the way




    -   Reinforcement Plate Mounting
    -   Tools： 6mm Allen Wrench
    -   Components（see: factory configuration）：Reinforcement plate 6、M6 screw 5、
    washer or bushing 11
    -	Requirement： Screw tightening torque 9-10Nm
    -	Diagram：

    - BB=68



    - BB=73





    - BB=100~110



    ③  Non-standard nuts installation
    -	Tools： Special wrench
    -	Components（see: factory configuration）：non-standard nut 4
    -	Requirement： before tightening the nut, turn the motor clockwise until the
        motor is close to the lower tube of the frame and does not turn until it
        stops, then use a special wrench to tighten the nut, torque is 45-50Nm when
        tightening
    -	Diagram：




    ④ Decoration cap installation
       -	 Components（see: factory configuration）：decoration cap 3
       -	 Operation: turn the decoration cap clockwise to the end by hand
       -	 Diagram:





     ⑤  Crank Installation
        -	Tool： 8mm Allen wrench
        -	Components（see: factory configuration）：axle screw 1、left crank 2、
                right crank 10
        -  	Requirement: central axle screw locking torque is 35-40Nm
        -	Diagram：






4) Speed Sensor Installation
   ①  Fasten the sensor to the frame flat fork with 2 cable ties, then install the
      magnets on the wheel spokes with a flat-blade screwdriver

      Notice：Make sure the magnetic field side of the magnet is aligned with the
      circular mark on the sensor

   ②  Loosen the screws on the sensor with a Phillips screwdriver, then move the
      receiver of the speed sensor, to ensure that the distance between the circular
      marking to the sensor surface and the magnet is from 2 to 10 mm, the tighten
      the screw with a screwdriver to complete the installation







      1-Sensor      2-Tie      3-Magnet    	4-Screw   	5-Receiver
 5) Wiring

    ① Operation：
      Insert the plugs on the bus cable, battery and speed sensor to the
      corresponding plugs of the motor，the other end of the bus cable can be plugged
      into the display, brake, throttle, etc.

    ② Precautions：
      Try not to pass all cables through the narrow space of the motor and bike
      frame, so as to avoid the cables being squeezed and damage

5. Warranty: The warranty on the motor is valid for 24 months from the SN date of
   production. This warranty does not mean that seller's products are not free from
   damage or permanent use.

6. Compatibility: Due to different communication protocols, our motors can only be
   used with the accompanying accessories we provide and are not compatible with
   accessories from other brands.

                 ATTENTION:   WARRANTY VOID IF SEAL IS REMOVED
