S7-190XR-20′-4.0 Tire

PRODUCT

S7-190XR-20′-4.0 Tire

eFat

Explore Unrivaled Versatility with This E-Bike Hub Motor Wheel!

Max Rated Power

750w

Max Torque

75nm

Max Speed

45Km/h

Working Voltage

52V

Working Temperature

-20,45C

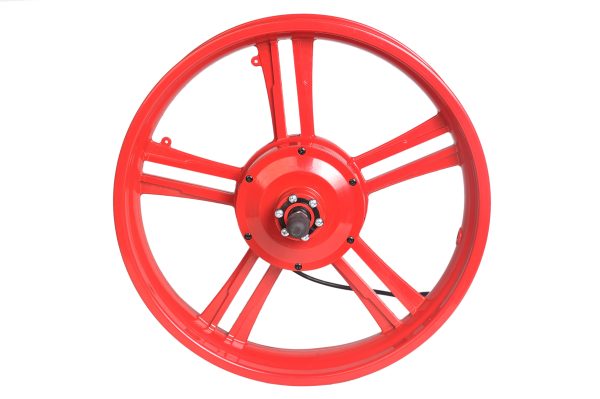

S7-190XR-20Y-4.0-01

THE HUB MOTOR WHEEL: THE PERFECT POWERHOUSE FOR YOUR E-BIKE!

POWER AND COMPATIBILITY

Powerful Motor Wheel: Initiate an electrifying adventure with this e-bike wheel, delivering a power output ranging from 350 to 750W, ensuring an extraordinary riding experience.

High-Performance Torque Wheel Motor: Experience unmatched speed and performance with this e-bike wheel featuring an impressive output torque of 75Nm, guaranteeing an exhilarating journey.

Versatile Hub Motor: Seamlessly adaptable to diverse power specifications, this e-bike wheel with a motor effortlessly integrates with battery ranges of 36, 48, 52 volts, offering enhanced versatility.



INTEGRATION AND DESIGN

Explore Unmatched Riding Comfort: Experience an effortless and delightful journey with this extraordinary e-bike motor wheel, mirroring the comforting familiarity of a traditional bicycle for an unmatched riding experience.

Crafted for Endurance: Precision-engineered using top-tier aluminum alloys, this rear motor wheel exemplifies durability and strength, guaranteeing consistent performance regardless of terrains and conditions.

Dependability in Action: Embraced and favored by prominent electric bicycle manufacturers, this e-bike motor wheel has consistently demonstrated reliability and exceptional performance, ensuring a trustworthy and secure riding adventure.

Unleash Your E-Bike’s Potential with Our Rear Hub Motor Wheel! Contact Us Now!

ADDITIONAL INFORMATION

S7 Series

S7-190XR-20'-4.0tire

Colour

Black / Silver

Installation site

Rear

Applied for E-bikes

e-Fat

Cable routing

axle-right

Cable length(mm)

200

Sprocket wheel

6~7

Brake style

Disk-brake

Open size(mm)

190

Wheel size(inch)

20

Voltage(Vdc)

36, 48, 52

Rated power(W)

350,500,750

Max speed(km/h)

32, 38, 45

Max torque(N.m)

>75

Reduction ratio

5.18:1

Magnet items(pcs)

20

Speed sensor(pcs)

1~6

Efficiency(%)

≥80

Work Temperature(℃)

-20~45

Noise items(dB)

<50

Weight(kg)

6.9

Waterproof Level

IP65

Shells Material

aluminium alloy

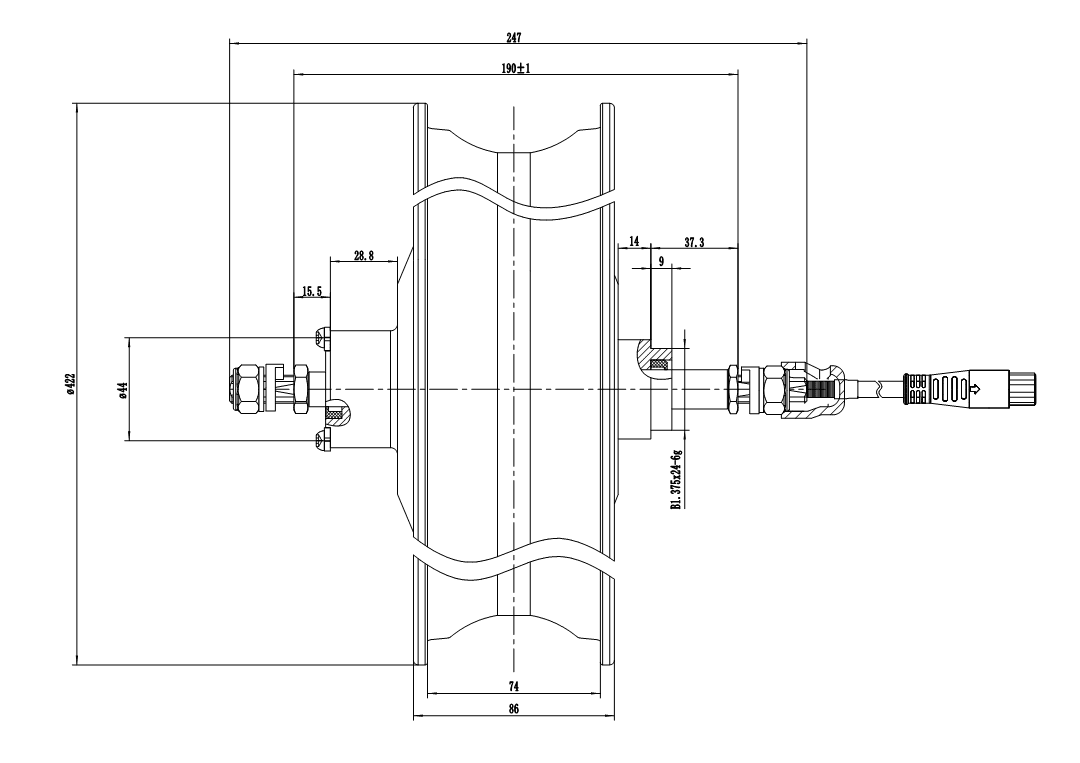

S7- 190XR – 20 outline drawing
