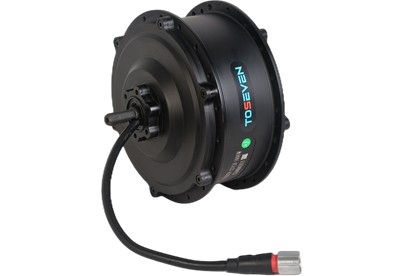

D79-140QL Hub Motor Unit

PRODUCT

Say Goodbye to Ordinary and Hello to Extraordinary!

Specially Crafted for The Front Wheel of Fat Tire Electric Bicycles

O.L.D is 140mm

Customizable Power Output of Up to 2000W

Achieves a Remarkable Maximum Torque of 110N.m

Unleash the Power, Conquer Any Terrain, And Ride With Confidence!

Why Choose the D79-140QL Hub Motor for Your E-Bike?

Exceptional Design: D79-140QL Hub Motor Crafted for fat tire e-bikes, ensuring an unmatched riding experience.

Customizable Power: Ranging from a minimum of 1000W, up to a thrilling 2000W, all with a max torque of 110N.m!

Built to Last: Robust aluminum alloys resist rust, corrosion, dust, and humidity.

Lightweight & Durable: Perfect balance of durability and featherweight design.

Whisper-Quiet: Integrated high-power motor for silent efficiency and rapid response.

High Efficiency, Low Noise: Enjoy high efficiency, minimal noise, and rapid responsiveness.

Contact Us Now To Elevate Your E-Bike Adventure!

Additional information

D79 Series	D79-175KL
Colour	Black / Silver
Installation Site	Front
Applied for E-bikes	e-FAT
Cable Routing	Side-Left
Cable Length(mm)	200
Sprocket Wheel	N.A.
Brake Style	Disk-Brake
Spokes Holes	36H
Spokes Size	13G/12G
Spokes Central Dist.(mm)	174
Open Size(mm)	140
Wheel Size(inch)	20/26/28/700C
Voltage(Vdc)	48, 52, 60
Rated Power(W)	1000,1500,2000
Max Speed(km/h)	50, 55, 60
Max Torque(N.m)	110
Reduction Ratio	5.8:1
Magnet Items(pcs)	16
Speed Sensor(pcs)	1～6
Efficiency(%)	≥80
Work Temperature(℃)	-20～45
Noise Items(dB)	＜50
Weight(kg)	5.5
Waterproof Level	IP65
Shells Material	Aluminium Alloy

View Our Catalog

TOSEVEN CATALOG

Discover the tools, the resources, and the means to transform your wildest dreams into tangible realities. From the vast array of artistic endeavors to the realm of technological innovation, there is no limit to what you can achieve when armed with the knowledge and vision this catalog imparts

Suzhou Toseven New Energy Technology Co., Ltd. is a professional electric bicycle motor manufacturer that integrates R&D, production, sales and after-sales departments.
