Mid Drive Unit

Dominate Any Terrain with Our High-Performance Mid-Drive E-Bike Motors!

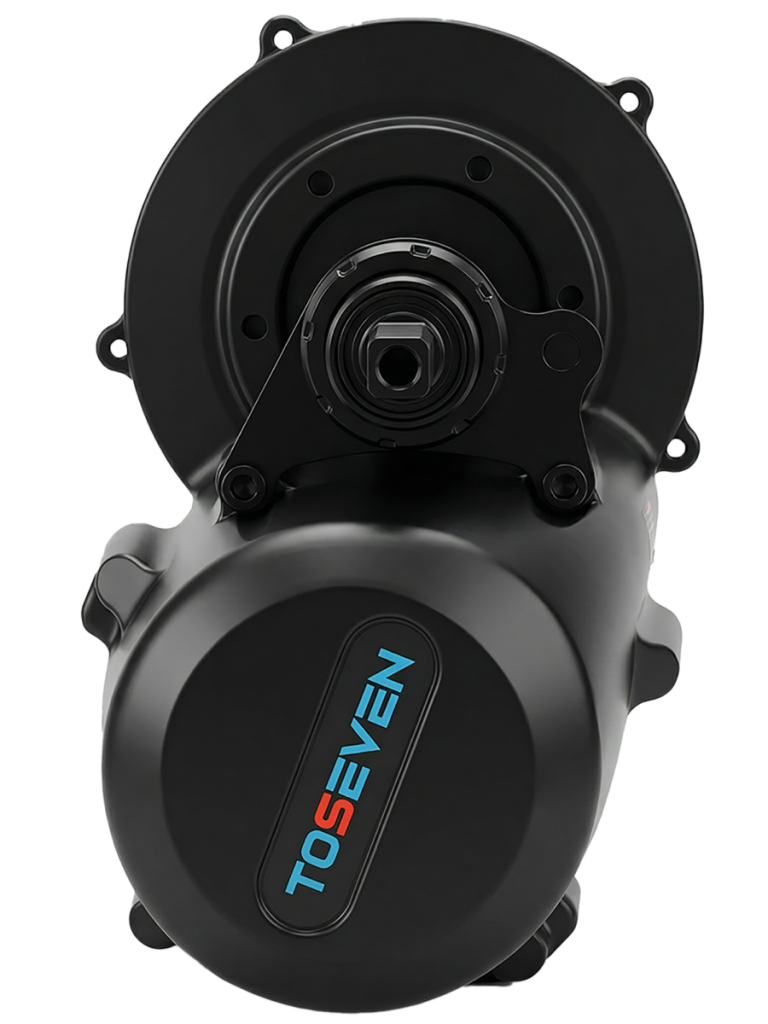

about TO7 DM mid drive motor

Mid-drive motors work with your bike's gears to give you more power and efficiency!

Integrated Torque and Speed Control, maximizing efficiency and minimizing energy consumption.

Seamlessly positioned at the bicycle's bottom bracket, demonstrating exceptional adaptability.

Robust protection against dust and water intrusion for exceptional durability.

dmo1

WEIGHT: 3.7 - 3.9KG
RATED POWER: 750, 1000W
WATERPROOF LEVEL: IP65
MAX SPEED: 160RPM
SUITABLE CHAIN WHEEL: 46T DEFAULT
MAX OUTPUT TORQUE: 160NM
WORKING TEMPERATURE: -20*C - 50*C
RECOMMENDED MAX CURRENT: 1000W, 48V, 30A || 750W, 48V, 26A
SPEED RATIO: 40.27

WEIGHT: 3.7 - 3.9KG
RATED POWER: 5OOW
WATERPROOF LEVEL: IP65
MAX SPEED: 100RPM
SUITABLE CHAIN WHEEL: 42T DEFAULT
MAX OUTPUT TORQUE: 90NM
WORKING TEMPERATURE: -20*C - 50*C
RECOMMENDED MAX CURRENT: 500W, 48V, 18A || 500W, 36V, 20A
SPEED RATIO: 53
